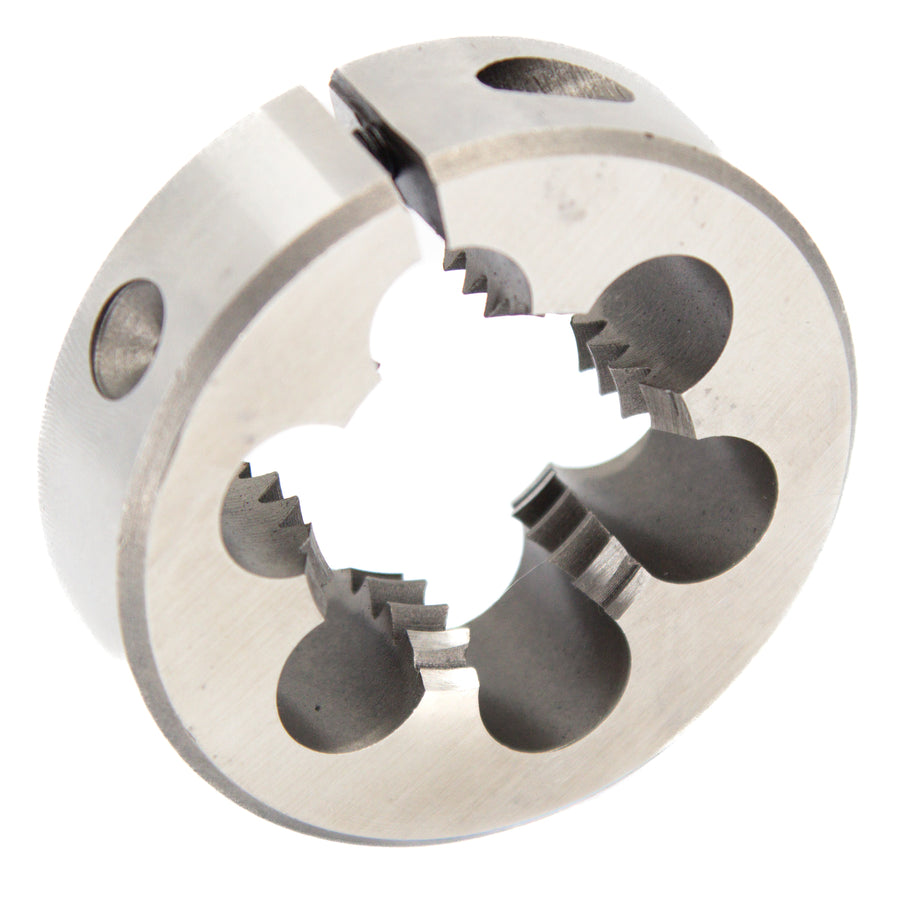

m25 x 2.5 2" OD HSS Round Adjustable Die Special

Product Description

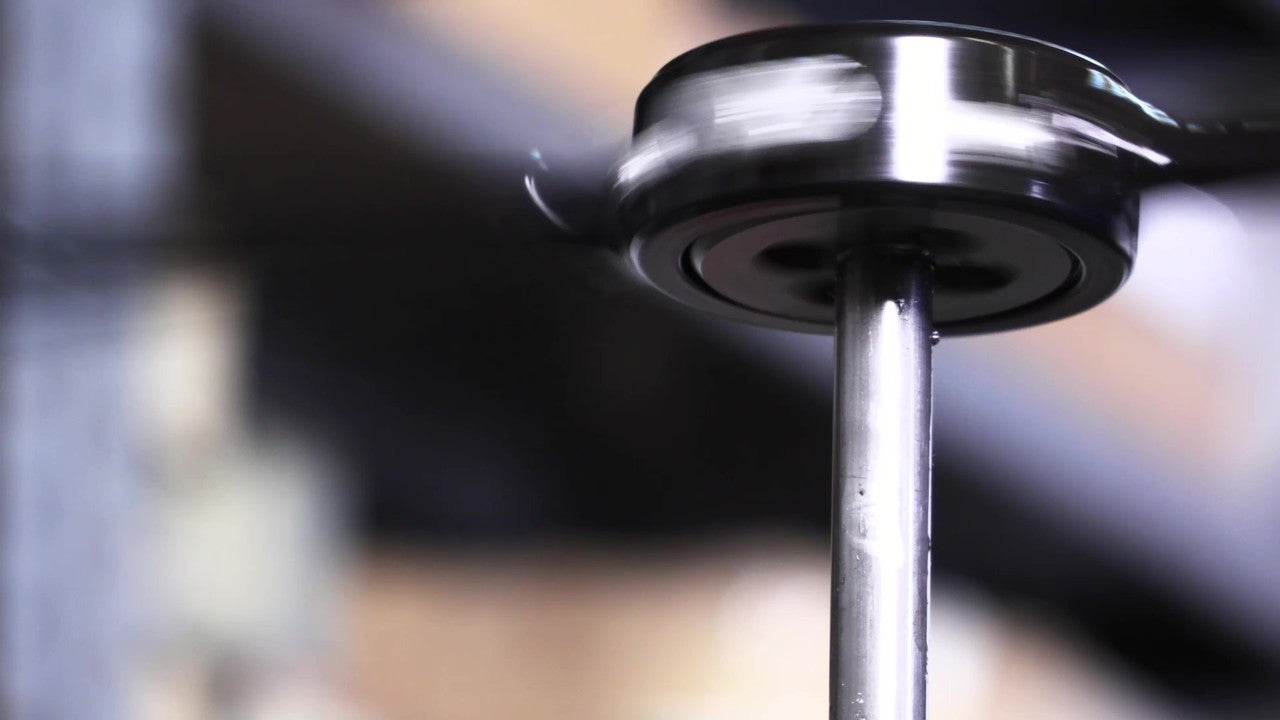

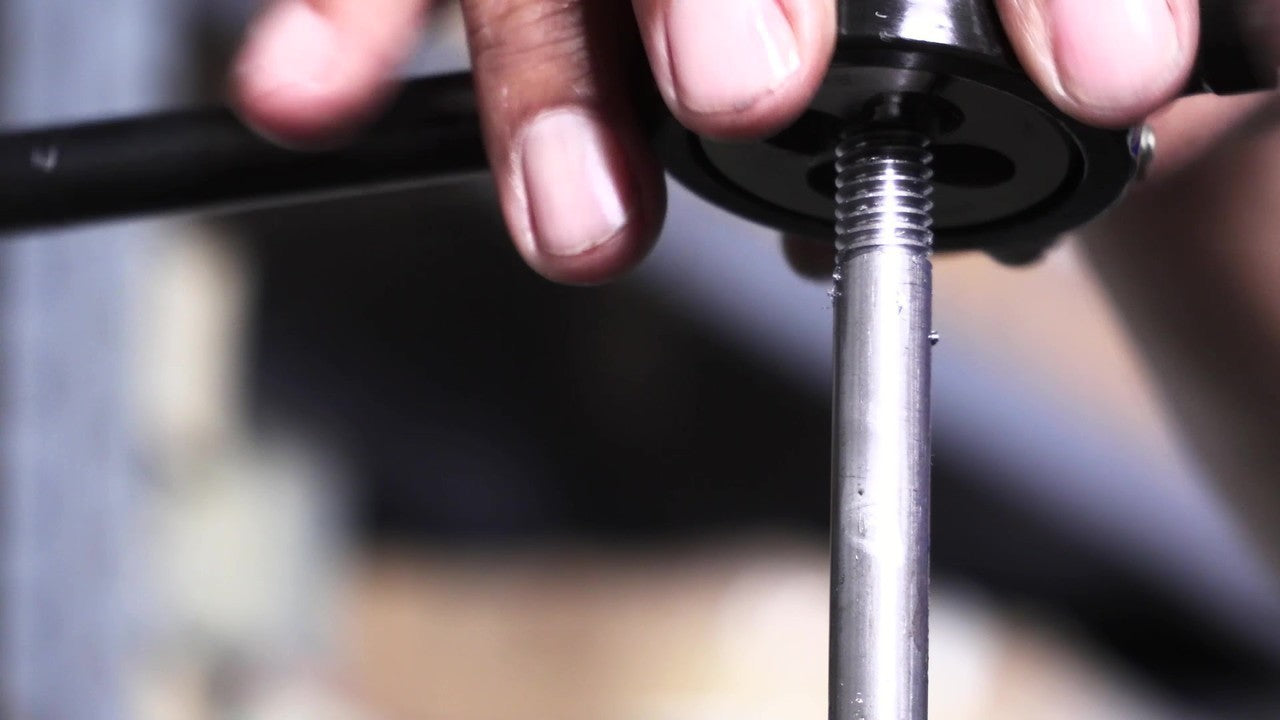

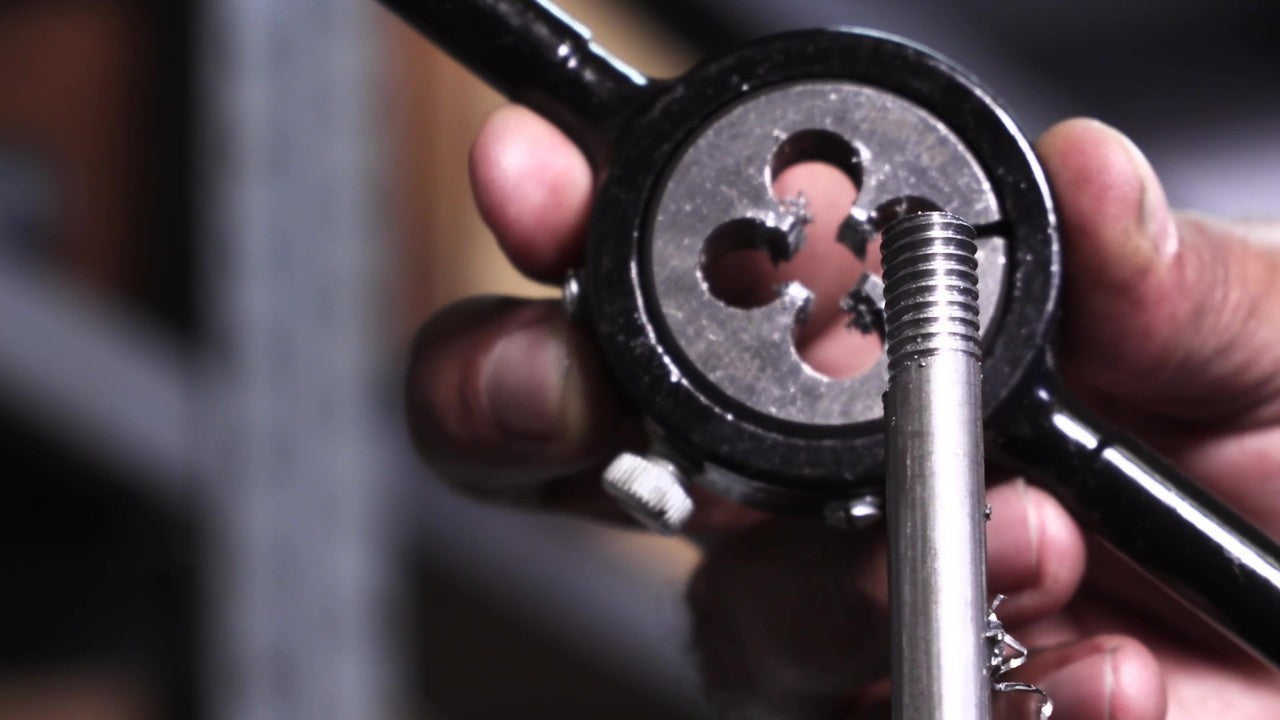

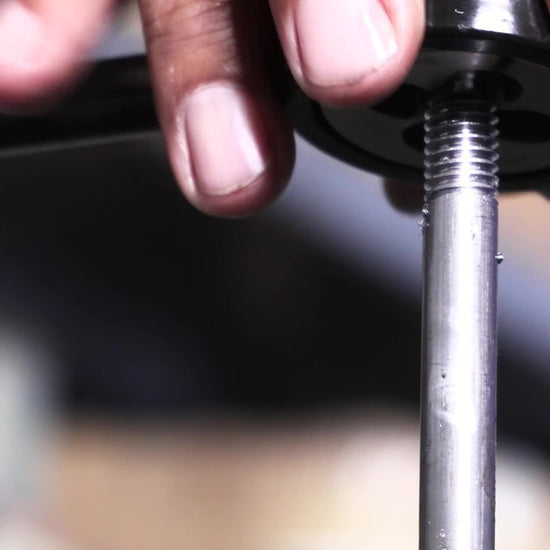

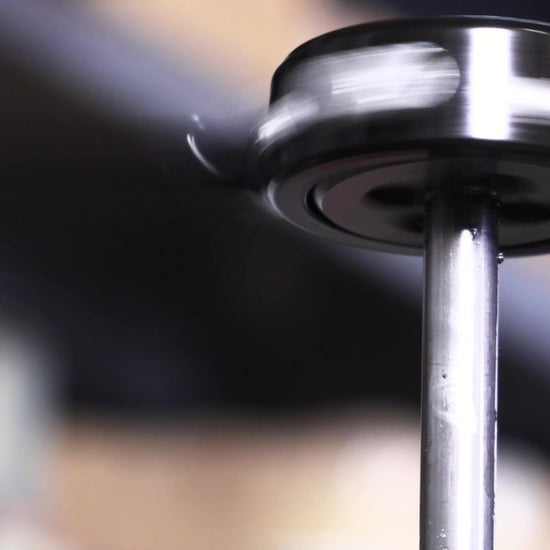

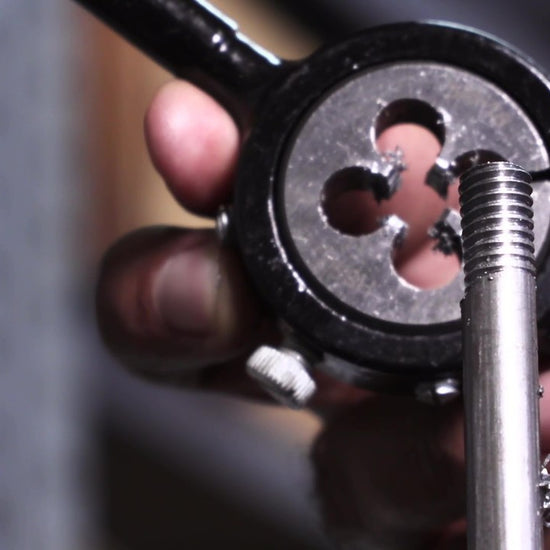

HSS Round Dies are for use in making new threads or re-threading existing threads. They are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance. Round dies are chamfered on both faces, one side has a 2 to 3 thread chamfer for threading and the other side has a 1 to 1-1/2 thread chamfer for threading close to a shoulder. Adjustments are made by a fine pitch screw which forces the sides of the die apart, or allows them to spring together. The slot is beveled so that when the dies are used in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder.

Brand Drill America
Part Number DWTSMR2-25X2.5
Size m25 x 2.5
Material High Speed Steel
Finish Uncoated (Bright)
Size m25
Outer Diameter 2"
Corresponding Die Stock 2"
Thread Type UNS
